SinfulSaint 29.05.2021. 07:22
Mladichi, trebam pomoc. Imam Samsung monitor/TV model P2770HD i na njegov jedini HDMI port ustekan novi DVB-T2 receiver. Problem je u tome sto nemam slike s receivera. Kaze 'No signal'. Kad ustekam isti receiver na drugom TV-u uredno dobijem sliku menija od receivera na izabranom HDMI ulazu. PC, lapto, RPI4 se uredno koriste istim HDMI portom na monitoru. Sve uredno radi. Ne kuzim. Hvala!

smuchac 29.05.2021. 08:44
Nemere monitor probavit rezoluciju prijemnika. Spoji se na telku i u reciveru smanji rezoluciju pa se opet ubodi u monitor.

Poslano sa mog Redmi Note 8 Pro koristeći Tapatalk

Nikky 29.05.2021. 08:46
Uzeti manual od monitora i pogledati koje rezolucije prima preko HDMI porta,
obrati pažnju na:
720p (1280 × 720 60Hz)
1080p (1920 × 1080 60Hz)

na drugom tv (gdje vidiš sliku sa DVB-T2 receivera), u postavkama recivera namjesti manualno jednu od navedenih rezolucija,
vratiš se na monitor i proba jeli radi.

Isto tako probaj sa drugim / boljim HDMI kabelom.

Edit: Manual > https://www.manualslib.com/manual/20...?page=2#manual
piše da bi 1920 × 1080 60Hz trebalo raditi.

SinfulSaint 29.05.2021. 09:17
Ma jasno sve to, da nisam to vec pokuso napravit i da je proradilo nebi vas molio pomoc. Hvala svejedno! Sve sam pokuso napravit... 1080 interleaved i progressive, 720p, 576p... PAL ili NTSC svejedno je. Format slike 16:9 ili 4:3... Ne sljaka. Ustekam ga na obicni monitor, sve ok... Fakat ne kuzim.


Druga mi je opcija ono... SCART... 2021 godine e...

Nikky 29.05.2021. 10:35
Jesi probao sa drugim hdmi kabelom ?

SinfulSaint 29.05.2021. 13:27
jesam Niki. 2 razlicita kabela.

Nikky 29.05.2021. 14:03
Hm, preostaju ti dva moguća testa:
- na nekom kompu se igrati sa raznim rezolucijama prema tom problematičnom monitoru pa vidi kako se ponaša
- kad prištekaš reciver na tv koji uredno prikaže sliku, u opcijama tv - a vidi jeli možeš prikazati info / rezoluciju da potvrdiš kakvu reciver šalje

Koje je to DVB-T2 receiver (govance), vidi jeli ima kakav fw update ...

smuchac 29.05.2021. 14:57
Što ne napisa šta si sve probao a ne da mi kakimo u prazno... :D

Poslano sa mog Redmi Note 8 Pro koristeći Tapatalk

SinfulSaint 29.05.2021. 20:05
okej, okej... pokusam pa javim. hvala svakako.


edit: nista od ovoga. odustajem. Drugi TV uredno daje info da receiver salje 1080p signal full HD i sve ostale koji se mogu u meniju odabrati. Samsung ni da prne. No signal. Kraj.

Visage 13.07.2021. 21:46

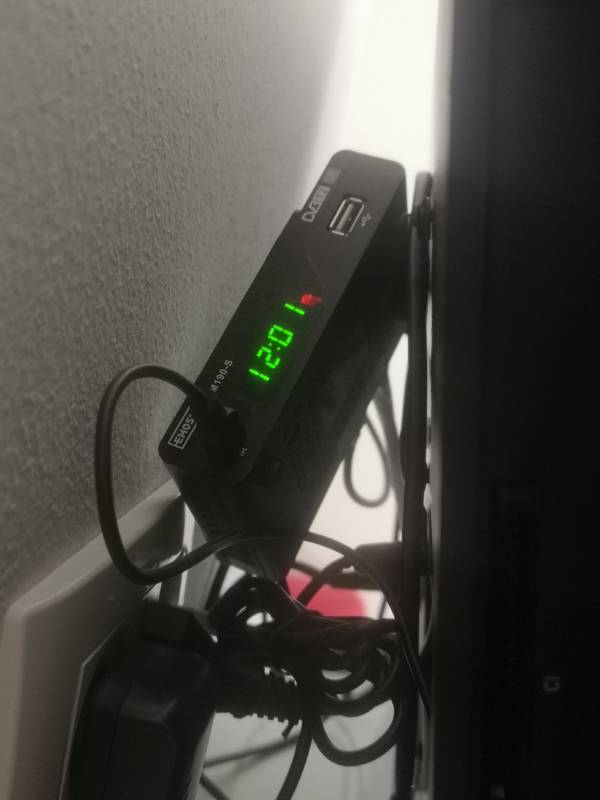

Osim hibridnog modela (sat/zemlja) njemacke branse od soma + kuna, zanima me, postoji li ijedan (da je netko zapazio) tuner koji osim dosadne numerike, moze i prikazivati na ekranu uredjaja - Naziv Programa?

Da lijepo pise koji je program aktivan, na samome uredjaju?

Htio sam za Krk uzeti dva komada necega, stvarno sam od poznatih probao stosta na nasem trzistu trenutno, ali niti jedan nije bez mane. Daljinski za plakati, nabacani reljefi prve kineske tiskarije, bez pretpostavke ergonomije. Disonantnost kod prebacivanja, ili jos gore, ubrzavanje, pa smirivanje sto sam vidio neki dan na zadnjem Nitro modelu.

Osim prvog pitanja, ima li nesato stabilno kao stijena na trzistu od malih kutijica? Da se kod mijenjanja, lijepo prebacuje na drugi, da nema nikakvog zamaranja navedenog tipa?

Hvala



....

*** Dalmatinka - Istine Glas ***

trebampomoc 20.08.2021. 22:29
Pozdrav,

Svježe sam kupio Grundig GRU 32GEH4820.
Na stranici stoji:
- HEVC/H.265 podrška
- Trostruki tuner DVB-T2/C/S2

Spojio sam sobnu antenu preko "antenske utičnice" direktno u TV, odem na pretraživanje, ali ništa ne izbaci.
Ništa drugo nije spojeno u TV, samo antena i napajanje.

https://i.ibb.co/QKN0Pfd/1.jpg https://i.ibb.co/BzpFpTv/2.jpg https://i.ibb.co/MRdLHrx/3.jpg https://i.ibb.co/jwLYxRv/4.jpg https://i.ibb.co/gdkTKPb/5.jpg https://i.ibb.co/41qs1fb/6.jpg

Je li mi možete, molim, reći u čemu griješim?
Hvala!


Edit: Morao sam odabrati "IZVOR UNOSA" i "DTV", te mi je sada pronašlo kanale :D

Lewis 20.08.2021. 22:44
Probaj u postavkama kod inicijalnog setupa staviti za drzavu njemacku, austriju ili slično pa onda odskeniraj kanale ponovno. Ako ni to ne uspije mozda ima samo HEVC player ali ne i tuner :(.

domy_os 05.09.2021. 18:53
Zna li netko jesu li ovi dole parametri kanala točni? Ako tko ima full info o kanalima na svom tuneru...

https://oiv.hr/hr/usluge-i-platforme...-programa-dtv/

Isti tuner mi na Windowsima nađe sve kanale, a na Linuxu lista s parametrima naših kanala nije updateana ohoho pa ne nalazi ništa.

https://git.linuxtv.org/dtv-scan-tables.git

Nikky 05.09.2021. 19:48
Ovo sa oiv je aktualno / ispravno,
DVB-T2, h265, ...

domy_os 05.09.2021. 19:59
Citiraj:
Autor Nikky (Post 3543654)
Ovo sa oiv je aktualno / ispravno,
DVB-T2, h265, ...
Trebam i modulaciju i sve ostale parametre da bi ovaj našao kanale.

Nikky 05.09.2021. 20:44
Jedan je stalno 6900 a onaj prvi isprobaj 64 - 128 - 256 (ne sjećam se sad napamet).
Ako su ti aktivni winsi kopiraj od tamo.

domy_os 05.09.2021. 20:52
Ne vidim te detalje na Windowsima, to je problem...

https://i.postimg.cc/DzmRqm5w/Screen...5159-linux.png

c-shadow 05.09.2021. 21:25
@domy

Info na OIV su točne.
To na linuxu koristiš neki program da mu treba gotova lista kanala ili su winblowsi u igri?
Za dobiti listu kanala u više formata na linuxu ti je najbolji t2scan:
https://github.com/mighty-p/t2scan
S tim sam ja pripremao listu za VDR, dok recimo HTS TVH nije ništa trebao, sam si sve poskenira.

Ako su winblowsi u igri, onda ti ne mogu pomoći :)

domy_os 05.09.2021. 22:04
Kaffeine koristim, ali probao sam i VLC, nula bodova kod oba. Taj t2scan mi se čini kao w_scan koji isto ništa ne nađe, ali testirat ću ga.

Tuner je uredno prepoznat u svim aplikacijama, signal skoro full jer sam pod Sljemenom, ali eto kanala nigdje.

c-shadow 05.09.2021. 22:20
Uf, kaffeine sam zadnje koristio 2008 :)
w_scan ne radi dobro na DVB-T2, ne moraš niti probati.
t2scan je noviji fork w_scana koji se održava. Radi kod mene odlično, regija D05, testirano na 2 različita USB T2 tunera. Iskompiliraj i probaj.

Standalone programe ne koristim, imam tuner uštekan na stroj na kojem se vrti TVH kao server i gledam preko Kodija i ponekad android klijenata.

domy_os 05.09.2021. 23:56
Nula bodova i dalje...

Code:
[domy@domy-nb t2scan]$ t2scan
t2scan
t2scan version 20201027 (compiled for DVB API 5.11)
guessing country 'HR', use -Y to override
using settings for CROATIA
DVB aerial
DVB-T Europe VHF and UHF
scan type TERRESTRIAL, channellist 14
output format vdr-2.1
output charset 'UTF-8', use -I to override
Info: using DVB adapter auto detection.
        /dev/dvb/adapter0/frontend0 -> TERRESTRIAL "Silicon Labs Si2168": very good :-))

Using TERRESTRIAL frontend (adapter /dev/dvb/adapter0/frontend0)
-_-_-_-_ Getting frontend capabilities-_-_-_-_
FE_READ_STATUS failed: 11 Resource temporarily unavailable
Using DVB API 5.11
frontend 'Silicon Labs Si2168' supports
DVB-T2
INVERSION_AUTO
QAM_AUTO
TRANSMISSION_MODE_AUTO
GUARD_INTERVAL_AUTO
HIERARCHY_AUTO
FEC_AUTO
BANDWIDTH_AUTO not supported, trying 6/7/8 MHz.
MULTISTREAM
FREQ (48.00MHz ... 870.00MHz)
-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_
Scanning DVB-T...
Scanning 7MHz frequencies...
177500 (CH5): (time: 00:00.590)  no signal
184500 (CH6): (time: 00:02.596)  no signal
191500 (CH7): (time: 00:04.602)  no signal
198500 (CH8): (time: 00:06.609)  no signal
205500 (CH9): (time: 00:08.615)  no signal
212500 (CH10): (time: 00:10.622)  no signal
219500 (CH11): (time: 00:12.627)  no signal
226500 (CH12): (time: 00:14.633)  no signal
Scanning 8MHz frequencies...
474000 (CH21): (time: 00:16.640)  no signal
482000 (CH22): (time: 00:18.647)  no signal
490000 (CH23): (time: 00:20.652)  no signal
498000 (CH24): (time: 00:22.659)  no signal
506000 (CH25): (time: 00:24.664)  no signal
514000 (CH26): (time: 00:26.670)  no signal
522000 (CH27): (time: 00:28.676)  no signal
530000 (CH28): (time: 00:30.683)  no signal
538000 (CH29): (time: 00:32.688)  no signal
546000 (CH30): (time: 00:34.695)  no signal
554000 (CH31): (time: 00:36.700)  no signal
562000 (CH32): (time: 00:38.706)  no signal
570000 (CH33): (time: 00:40.712)  no signal
578000 (CH34): (time: 00:42.718)  no signal
586000 (CH35): (time: 00:44.724)  no signal
594000 (CH36): (time: 00:46.730)  no signal
602000 (CH37): (time: 00:48.736)  no signal
610000 (CH38): (time: 00:50.743)  no signal
618000 (CH39): (time: 00:52.748)  no signal
626000 (CH40): (time: 00:54.754)  no signal
634000 (CH41): (time: 00:56.761)  no signal
642000 (CH42): (time: 00:58.767)  no signal
650000 (CH43): (time: 01:00.773)  no signal
658000 (CH44): (time: 01:02.779)  no signal
666000 (CH45): (time: 01:04.785)  no signal
674000 (CH46): (time: 01:06.791)  no signal
682000 (CH47): (time: 01:08.797)  no signal
690000 (CH48): (time: 01:10.803)  no signal
698000 (CH49): (time: 01:12.809)  no signal
706000 (CH50): (time: 01:14.814)  no signal
714000 (CH51): (time: 01:16.821)  no signal
722000 (CH52): (time: 01:18.827)  no signal
730000 (CH53): (time: 01:20.833)  no signal
738000 (CH54): (time: 01:22.839)  no signal
746000 (CH55): (time: 01:24.845)  no signal
754000 (CH56): (time: 01:26.851)  no signal
762000 (CH57): (time: 01:28.857)  no signal
770000 (CH58): (time: 01:30.863)  no signal
778000 (CH59): (time: 01:32.869)  no signal
786000 (CH60): (time: 01:34.875)  no signal
794000 (CH61): (time: 01:36.881)  no signal
802000 (CH62): (time: 01:38.888)  no signal
810000 (CH63): (time: 01:40.894)  no signal
818000 (CH64): (time: 01:42.901)  no signal
826000 (CH65): (time: 01:44.907)  no signal
834000 (CH66): (time: 01:46.913)  no signal
842000 (CH67): (time: 01:48.920)  no signal
850000 (CH68): (time: 01:50.925)  no signal
858000 (CH69): (time: 01:52.931)  no signal
Scanning DVB-T2...
Scanning 7MHz frequencies...
177500 (CH5): (time: 01:54.937)
  plp id -1:  no signal
184500 (CH6): (time: 01:56.943)
  plp id -1:  no signal
191500 (CH7): (time: 01:58.949)
  plp id -1:  no signal
198500 (CH8): (time: 02:00.956)
  plp id -1:  no signal
205500 (CH9): (time: 02:02.962)
  plp id -1:  no signal
212500 (CH10): (time: 02:04.968)
  plp id -1:  no signal
219500 (CH11): (time: 02:06.974)
  plp id -1:  no signal
226500 (CH12): (time: 02:08.981)
  plp id -1:  no signal
Scanning 8MHz frequencies...
474000 (CH21): (time: 02:10.988)
  plp id -1:  no signal
482000 (CH22): (time: 02:12.994)
  plp id -1:  no signal
490000 (CH23): (time: 02:15.000)
  plp id -1:  no signal
498000 (CH24): (time: 02:17.006)
  plp id -1:  no signal
506000 (CH25): (time: 02:19.012)
  plp id -1:  no signal
514000 (CH26): (time: 02:21.018)
  plp id -1:  no signal
522000 (CH27): (time: 02:23.025)
  plp id -1:  no signal
530000 (CH28): (time: 02:25.031)
  plp id -1:  no signal
538000 (CH29): (time: 02:27.037)
  plp id -1:  no signal
546000 (CH30): (time: 02:29.043)
  plp id -1:  no signal
554000 (CH31): (time: 02:31.049)
  plp id -1:  no signal
562000 (CH32): (time: 02:33.056)
  plp id -1:  no signal
570000 (CH33): (time: 02:35.062)
  plp id -1:  no signal
578000 (CH34): (time: 02:37.069)
  plp id -1:  no signal
586000 (CH35): (time: 02:39.075)
  plp id -1:  no signal
594000 (CH36): (time: 02:41.081)
  plp id -1:  no signal
602000 (CH37): (time: 02:43.087)
  plp id -1:  no signal
610000 (CH38): (time: 02:45.093)
  plp id -1:  no signal
618000 (CH39): (time: 02:47.098)
  plp id -1:  no signal
626000 (CH40): (time: 02:49.105)
  plp id -1:  no signal
634000 (CH41): (time: 02:51.110)
  plp id -1:  no signal
642000 (CH42): (time: 02:53.116)
  plp id -1:  no signal
650000 (CH43): (time: 02:55.121)
  plp id -1:  no signal
658000 (CH44): (time: 02:57.129)
  plp id -1:  no signal
666000 (CH45): (time: 02:59.135)
  plp id -1:  no signal
674000 (CH46): (time: 03:01.141)
  plp id -1:  no signal
682000 (CH47): (time: 03:03.147)
  plp id -1:  no signal
690000 (CH48): (time: 03:05.153)
  plp id -1:  no signal
698000 (CH49): (time: 03:07.160)
  plp id -1:  no signal
706000 (CH50): (time: 03:09.166)
  plp id -1:  no signal
714000 (CH51): (time: 03:11.172)
  plp id -1:  no signal
722000 (CH52): (time: 03:13.179)
  plp id -1:  no signal
730000 (CH53): (time: 03:15.185)
  plp id -1:  no signal
738000 (CH54): (time: 03:17.191)
  plp id -1:  no signal
746000 (CH55): (time: 03:19.197)
  plp id -1:  no signal
754000 (CH56): (time: 03:21.204)
  plp id -1:  no signal
762000 (CH57): (time: 03:23.209)
  plp id -1:  no signal
770000 (CH58): (time: 03:25.216)
  plp id -1:  no signal
778000 (CH59): (time: 03:27.223)
  plp id -1:  no signal
786000 (CH60): (time: 03:29.228)
  plp id -1:  no signal
794000 (CH61): (time: 03:31.236)
  plp id -1:  no signal
802000 (CH62): (time: 03:33.241)
  plp id -1:  no signal
810000 (CH63): (time: 03:35.247)
  plp id -1:  no signal
818000 (CH64): (time: 03:37.253)
  plp id -1:  no signal
826000 (CH65): (time: 03:39.260)
  plp id -1:  no signal
834000 (CH66): (time: 03:41.266)
  plp id -1:  no signal
842000 (CH67): (time: 03:43.272)
  plp id -1:  no signal
850000 (CH68): (time: 03:45.278)
  plp id -1:  no signal
858000 (CH69): (time: 03:47.284)
  plp id -1:  no signal
(time: 03:49.290) dumping lists (0 services)
..
Done, scan time: 03:49.290
EDIT 1: Uspio sam, krivi firmware je uhvatio. Ranije sam spajao neki kineski tuner kad mi je komšija dolazio. Sada je druga priča...

Code:
[domy@domy-nb t2scan]$ t2scan
t2scan
t2scan version 20201027 (compiled for DVB API 5.11)
guessing country 'HR', use -Y to override
using settings for CROATIA
DVB aerial
DVB-T Europe VHF and UHF
scan type TERRESTRIAL, channellist 14
output format vdr-2.1
output charset 'UTF-8', use -I to override
Info: using DVB adapter auto detection.
        /dev/dvb/adapter0/frontend0 -> TERRESTRIAL "Silicon Labs Si2168": very good :-))

Using TERRESTRIAL frontend (adapter /dev/dvb/adapter0/frontend0)
-_-_-_-_ Getting frontend capabilities-_-_-_-_
Using DVB API 5.11
frontend 'Silicon Labs Si2168' supports
DVB-T2
INVERSION_AUTO
QAM_AUTO
TRANSMISSION_MODE_AUTO
GUARD_INTERVAL_AUTO
HIERARCHY_AUTO
FEC_AUTO
BANDWIDTH_AUTO not supported, trying 6/7/8 MHz.
MULTISTREAM
FREQ (48.00MHz ... 870.00MHz)
-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_
Scanning DVB-T...
Scanning 7MHz frequencies...
177500 (CH5): (time: 00:00.819)  no signal
184500 (CH6): (time: 00:02.848)  no signal
191500 (CH7): (time: 00:04.893)  no signal
198500 (CH8): (time: 00:06.902)  no signal
205500 (CH9): (time: 00:08.926)  no signal
212500 (CH10): (time: 00:10.933)  no signal
219500 (CH11): (time: 00:12.960)  no signal
226500 (CH12): (time: 00:14.964)  no signal
Scanning 8MHz frequencies...
474000 (CH21): (time: 00:16.987)  no signal
482000 (CH22): (time: 00:19.034)  no signal
490000 (CH23): (time: 00:21.046)  no signal
498000 (CH24): (time: 00:23.067)  no signal
506000 (CH25): (time: 00:25.078)  no signal
514000 (CH26): (time: 00:27.102)  no signal
522000 (CH27): (time: 00:29.150)  no lock
530000 (CH28): (time: 00:33.691)  no signal
538000 (CH29): (time: 00:35.700)  no signal
546000 (CH30): (time: 00:37.723)  no signal
554000 (CH31): (time: 00:39.735)  no signal
562000 (CH32): (time: 00:41.758)  no signal
570000 (CH33): (time: 00:43.804)  no signal
578000 (CH34): (time: 00:45.811)  no signal
586000 (CH35): (time: 00:47.839)  no lock
594000 (CH36): (time: 00:52.572)  no signal
602000 (CH37): (time: 00:54.619)  no lock
610000 (CH38): (time: 00:59.151)  no lock
618000 (CH39): (time: 01:03.980)  no signal
626000 (CH40): (time: 01:06.023)  no signal
634000 (CH41): (time: 01:08.069)  no signal
642000 (CH42): (time: 01:10.069)  no signal
650000 (CH43): (time: 01:12.090)  no signal
658000 (CH44): (time: 01:14.103)  no signal
666000 (CH45): (time: 01:16.124)  no signal
674000 (CH46): (time: 01:18.134)  no signal
682000 (CH47): (time: 01:20.153)  no signal
690000 (CH48): (time: 01:22.201)  no signal
698000 (CH49): (time: 01:24.251)  no signal
706000 (CH50): (time: 01:26.253)  no signal
714000 (CH51): (time: 01:28.295)  no signal
722000 (CH52): (time: 01:30.338)  no signal
730000 (CH53): (time: 01:32.339)  no signal
738000 (CH54): (time: 01:34.366)  no signal
746000 (CH55): (time: 01:36.372)  no signal
754000 (CH56): (time: 01:38.395)  no signal
762000 (CH57): (time: 01:40.403)  no signal
770000 (CH58): (time: 01:42.429)  no signal
778000 (CH59): (time: 01:44.471)  no signal
786000 (CH60): (time: 01:46.518)  no signal
794000 (CH61): (time: 01:48.520)  no signal
802000 (CH62): (time: 01:50.565)  no signal
810000 (CH63): (time: 01:52.603)  no signal
818000 (CH64): (time: 01:54.615)  no signal
826000 (CH65): (time: 01:56.639)  no signal
834000 (CH66): (time: 01:58.645)  no signal
842000 (CH67): (time: 02:00.666)  no signal
850000 (CH68): (time: 02:02.714)  no signal
858000 (CH69): (time: 02:04.750)  no signal
Scanning DVB-T2...
Scanning 7MHz frequencies...
177500 (CH5): (time: 02:06.751)
  plp id -1:  no signal
184500 (CH6): (time: 02:08.756)
  plp id -1:  no signal
191500 (CH7): (time: 02:10.781)
  plp id -1:  no signal
198500 (CH8): (time: 02:12.832)
  plp id -1:  no signal
205500 (CH9): (time: 02:14.875)
  plp id -1:  no signal
212500 (CH10): (time: 02:16.885)
  plp id -1:  no signal
219500 (CH11): (time: 02:18.918)
  plp id -1:  no signal
226500 (CH12): (time: 02:20.967)
  plp id -1:  no signal
Scanning 8MHz frequencies...
474000 (CH21): (time: 02:23.004)
  plp id -1:  no signal
482000 (CH22): (time: 02:25.012)
  plp id -1:  no signal
490000 (CH23): (time: 02:27.046)
  plp id -1:  no signal
498000 (CH24): (time: 02:29.094)
  plp id -1:  no signal
506000 (CH25): (time: 02:31.134)
  plp id -1:  signal ok:      QAM_AUTO f = 506000 kHz I999B8C999D999T999G999Y999P-1 (0:0:0)
        QAM_AUTO f = 506000 kHz I999B8C999D0T32G19256Y0P0 (8383:12545:10) : scanning for services
        service = HTV1 HD (OIV)
        service = HTV2 HD (OIV)
        service = RTL HD (OIV)
        service = NOVA TV HD (OIV)
        service = HRT3 HD (OIV)
        service = HRT4 HD (OIV)
        service = RTL 2  HD (OIV)
        service = Doma TV HD (OIV)
(time: 02:39.468)
  plp id 0:  skipped (already scanned PLP ID)
(time: 02:39.468)
  plp id 1:  no lock
514000 (CH26): (time: 02:45.810)
  plp id -1:  no signal
522000 (CH27): (time: 02:47.838)
  plp id -1:  no signal
530000 (CH28): (time: 02:49.847)
  plp id -1:  signal ok:      QAM_AUTO f = 530000 kHz I999B8C999D999T999G999Y999P-1 (0:0:0)
        QAM_AUTO f = 530000 kHz I999B8C999D0T32G19256Y0P0 (8383:12565:54277) : scanning for services
        service = EVOtv info (OIV)
        service = EVOtv portal (OIV)
        service = Al Jazeera Balkans (OIV)
        service = CNN (OIV)
        service = National Geographic (OIV)
        service = NatGeo Wild (OIV)
        service = Viasat Explore (OIV)
        service = Viasat History (OIV)
        service = Epic Drama (OIV)
        service = Doku TV HD (OIV)
        service = Viasat Nature HD (OIV)
        service = HBO HD (OIV)
        service = HBO2 HD (OIV)
        service = HBO3 HD (OIV)
        service = Cinemax (OIV)
        service = Cinemax 2 (OIV)
        service = Klasik TV (OIV)
        service = TV1000 (OIV)
        service = AXN (OIV)
        service = Pickbox TV (OIV)
        service = RTL Living (OIV)
        service = Kino TV (OIV)
        service = Cinestar TV (OIV)
        service = FOX (OIV)
        service = FOX Life (OIV)
        service = M1 FILM (OIV)
        service = M1 GOLD (OIV)
        service = ReboxSSU (OIV)
        service = Irdeto Code HD-T52IR (OIV)
(time: 02:51.998)
  plp id 0:  skipped (already scanned PLP ID)
(time: 02:51.998)
  plp id 1:  no lock
538000 (CH29): (time: 02:58.357)
  plp id -1:  no signal
546000 (CH30): (time: 03:00.384)
  plp id -1:  no signal
554000 (CH31): (time: 03:02.427)
  plp id -1:  no signal
562000 (CH32): (time: 03:04.434)
  plp id -1:  no signal
570000 (CH33): (time: 03:06.459)
  plp id -1:  no signal
578000 (CH34): (time: 03:08.470)
  plp id -1:  signal ok:      QAM_AUTO f = 578000 kHz I999B8C999D999T999G999Y999P-1 (0:0:0)
        QAM_AUTO f = 578000 kHz I999B8C999D0T32G19256Y0P0 (8383:12546:23) : scanning for services
        service = Sportska televizija HD (OIV)
        service = RTL KOCKICA HD (OIV)
        service = CMC HD (OIV)
        service = VTV VARAZDIN HD (OIV)
        service = EVOtv info (OIV)
        service = EVOtv promo (OIV)
        service = Arenasport 7 (OIV)
        service = Arenasport 8 (OIV)
        service = Arenasport 9 (OIV)
        service = Arenasport 10 (OIV)
(time: 03:14.233)
  plp id 0:  skipped (already scanned PLP ID)
(time: 03:14.233)
  plp id 1:  no lock
586000 (CH35): (time: 03:20.566)
  plp id -1:  no signal
594000 (CH36): (time: 03:22.597)
  plp id -1:  no signal
602000 (CH37): (time: 03:24.647)
  plp id -1:  no signal
610000 (CH38): (time: 03:26.696)
  plp id -1:  no signal
618000 (CH39): (time: 03:28.743)
  plp id -1:  no signal
626000 (CH40): (time: 03:30.785)
  plp id -1:  signal ok:      QAM_AUTO f = 626000 kHz I999B8C999D999T999G999Y999P-1 (0:0:0)
        QAM_AUTO f = 626000 kHz I999B8C999D0T32G19256Y0P0 (8383:12546:24) : scanning for services
        service = Sportska televizija HD (OIV)
        service = RTL KOCKICA HD (OIV)
        service = CMC HD (OIV)
        service = OTV HD (OIV)
        service = MrezaZG HD (OIV)
        service = Z1 HD (OIV)
        service = EVOtv info (OIV)
        service = EVOtv promo (OIV)
        service = Arenasport 7 (OIV)
        service = Arenasport 8 (OIV)
        service = Arenasport 9 (OIV)
        service = Arenasport 10 (OIV)
        service = Rebox (OIV)
(time: 03:34.313)
  plp id 0:  skipped (already scanned PLP ID)
(time: 03:34.313)
  plp id 1:  no lock
634000 (CH41): (time: 03:40.763)
  plp id -1:  no signal
642000 (CH42): (time: 03:42.802)
  plp id -1:  no signal
650000 (CH43): (time: 03:44.847)
  plp id -1:  no signal
658000 (CH44): (time: 03:46.858)
  plp id -1:  no signal
666000 (CH45): (time: 03:48.903)
  plp id -1:  no signal
674000 (CH46): (time: 03:50.950)
  plp id -1:  no signal
682000 (CH47): (time: 03:53.000)
  plp id -1:  no signal
690000 (CH48): (time: 03:55.047)
  plp id -1:  no lock
(time: 04:01.551)
  plp id 0:  no lock
(time: 04:07.962)
  plp id 1:  no lock
698000 (CH49): (time: 04:14.418)
  plp id -1:  no signal
706000 (CH50): (time: 04:16.418)
  plp id -1:  no signal
714000 (CH51): (time: 04:18.465)
  plp id -1:  no signal
722000 (CH52): (time: 04:20.465)
  plp id -1:  no signal
730000 (CH53): (time: 04:22.489)
  plp id -1:  no signal
738000 (CH54): (time: 04:24.539)
  plp id -1:  no signal
746000 (CH55): (time: 04:26.545)
  plp id -1:  no signal
754000 (CH56): (time: 04:28.573)
  plp id -1:  no signal
762000 (CH57): (time: 04:30.624)
  plp id -1:  no signal
770000 (CH58): (time: 04:32.630)
  plp id -1:  no signal
778000 (CH59): (time: 04:34.654)
  plp id -1:  no signal
786000 (CH60): (time: 04:36.658)
  plp id -1:  no signal
794000 (CH61): (time: 04:38.698)
  plp id -1:  no signal
802000 (CH62): (time: 04:40.743)
  plp id -1:  no signal
810000 (CH63): (time: 04:42.788)
  plp id -1:  no signal
818000 (CH64): (time: 04:44.788)
  plp id -1:  no signal
826000 (CH65): (time: 04:46.808)
  plp id -1:  no signal
834000 (CH66): (time: 04:48.857)
  plp id -1:  no signal
842000 (CH67): (time: 04:50.906)
  plp id -1:  no signal
850000 (CH68): (time: 04:52.953)
  plp id -1:  no signal
858000 (CH69): (time: 04:55.001)
  plp id -1:  no signal
NOTE: There are duplicate services in your channel list.
(time: 04:57.014) dumping lists (57 services)
..
HTV1 HD;OIV:506000:B8D0G19256S1T32Y0P0:T:27500:1011=36:1012=hrv@17:1015:0:1001:8383:10:0
HTV2 HD;OIV:506000:B8D0G19256S1T32Y0P0:T:27500:1021=36:1022=hrv@17:1025:0:1002:8383:10:0
RTL HD;OIV:506000:B8D0G19256S1T32Y0P0:T:27500:1031=36:1032=hrv@17:1035:0:1003:8383:10:0
NOVA TV HD;OIV:506000:B8D0G19256S1T32Y0P0:T:27500:1041=36:1042=hrv@17:1045:0:1004:8383:10:0
HRT3 HD;OIV:506000:B8D0G19256S1T32Y0P0:T:27500:1051=36:1052=hrv@17:1055:0:1005:8383:10:0
HRT4 HD;OIV:506000:B8D0G19256S1T32Y0P0:T:27500:1061=36:1062=hrv@17:1065:0:1006:8383:10:0
RTL 2  HD;OIV:506000:B8D0G19256S1T32Y0P0:T:27500:1071=36:1072=hrv@17:1075:0:1007:8383:10:0
Doma TV HD;OIV:506000:B8D0G19256S1T32Y0P0:T:27500:1081=36:1082=hrv@17:1085:0:1008:8383:10:0
EVOtv info;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3011=27:3012=eng@17:0:69B:3100:8383:54277:0
EVOtv portal;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3251=27:0:0:0:3103:8383:54277:0
Al Jazeera Balkans;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3031=27:3032@17:0:69B:3105:8383:54277:0
CNN;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3041=27:3042=eng@17:0:69B:3106:8383:54277:0
National Geographic;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3051=27:3052=eng@17:0:69B:3107:8383:54277:0
NatGeo Wild;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3061=27:3062=eng@17:0:69B:3108:8383:54277:0
Viasat Explore;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3071=27:3072=eng@17:0:69B:3109:8383:54277:0
Viasat History;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3081=27:3082=eng@17:0:69B:3110:8383:54277:0
Epic Drama;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3101=27:3102=hrv@17:0:69B:3112:8383:54277:0
Doku TV HD;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3241=27:3242@17:0:69B:3113:8383:54277:0
Viasat Nature HD;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3261=27:3262=eng@17:0:69B:3114:8383:54277:0
HBO HD;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3021=27:3022=eng@17,3023=eng@15:0:69B:3199:8383:54277:0
HBO2 HD;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3111=27:3112=eng@17:0:69B:3200:8383:54277:0
HBO3 HD;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3121=27:3122=eng@17:0:69B:3201:8383:54277:0
Cinemax;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3131=27:3132=eng@17:0:69B:3202:8383:54277:0
Cinemax 2;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3141=27:3142=eng@17:0:69B:3203:8383:54277:0
Klasik TV;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3151=27:3152=hrv@17:0:69B:3204:8383:54277:0
TV1000;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3161=27:3162=eng@17:0:69B:3205:8383:54277:0
AXN;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3171=27:3172=eng@17:0:69B:3206:8383:54277:0
Pickbox TV;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3181=27:3182=eng@17:0:69B:3207:8383:54277:0
RTL Living;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3191=27:3192=eng@17:0:69B:3208:8383:54277:0
Kino TV;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3201=27:3202=hrv@17:0:69B:3209:8383:54277:0
Cinestar TV;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3211=27:3212=eng@17:0:69B:3210:8383:54277:0
FOX;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3221=27:3222=hrv@17:0:69B:3211:8383:54277:0
FOX Life;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3231=27:3232=hrv@17:0:69B:3212:8383:54277:0
M1 FILM;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3291=27:3292=eng@17:0:69B:3213:8383:54277:0
M1 GOLD;OIV:530000:B8D0G19256S1T32Y0P0:T:27500:3091=27:3092@17:0:69B:3214:8383:54277:0
Sportska televizija HD;OIV:578000:B8D0G19256S1T32Y0P0:T:27500:2011=36:2012=hrv@17:0:0:2011:8383:23:0
RTL KOCKICA HD;OIV:578000:B8D0G19256S1T32Y0P0:T:27500:2021=36:2022=hrv@17:2025:0:2012:8383:23:0
CMC HD;OIV:578000:B8D0G19256S1T32Y0P0:T:27500:2031=36:2032=hrv@17:0:0:2013:8383:23:0
VTV VARAZDIN HD;OIV:578000:B8D0G19256S1T32Y0P0:T:27500:2321=36:2322=hrv@17:2325:0:2327:8383:23:0
EVOtv info;OIV:578000:B8D0G19256S1T32Y0P0:T:27500:1211=27:1212=eng@17:0:69B:20123:8383:23:0
EVOtv promo;OIV:578000:B8D0G19256S1T32Y0P0:T:27500:1221=27:0:0:0:20125:8383:23:0
Arenasport 7;OIV:578000:B8D0G19256S1T32Y0P0:T:27500:1301=27:1302=hrv@17:0:69B:20407:8383:23:0
Arenasport 8;OIV:578000:B8D0G19256S1T32Y0P0:T:27500:1311=27:1312@17:0:69B:20408:8383:23:0
Arenasport 9;OIV:578000:B8D0G19256S1T32Y0P0:T:27500:1321=27:1322@17:0:69B:20409:8383:23:0
Arenasport 10;OIV:578000:B8D0G19256S1T32Y0P0:T:27500:1331=27:1332@17:0:69B:20410:8383:23:0
Sportska televizija HD;OIV:626000:B8D0G19256S1T32Y0P0:T:27500:2011=36:2012=hrv@17:0:0:2011:8383:24:0
RTL KOCKICA HD;OIV:626000:B8D0G19256S1T32Y0P0:T:27500:2021=36:2022=hrv@17:2025:0:2012:8383:24:0
CMC HD;OIV:626000:B8D0G19256S1T32Y0P0:T:27500:2031=36:2032=hrv@17:0:0:2013:8383:24:0
OTV HD;OIV:626000:B8D0G19256S1T32Y0P0:T:27500:2411=36:2412=hrv@17:0:0:2431:8383:24:0
MrezaZG HD;OIV:626000:B8D0G19256S1T32Y0P0:T:27500:2421=36:2422=hrv@17:0:0:2432:8383:24:0
Z1 HD;OIV:626000:B8D0G19256S1T32Y0P0:T:27500:2431=36:2432=eng@17:0:0:2433:8383:24:0
EVOtv info;OIV:626000:B8D0G19256S1T32Y0P0:T:27500:1211=27:1212=eng@17:0:69B:20123:8383:24:0
EVOtv promo;OIV:626000:B8D0G19256S1T32Y0P0:T:27500:1221=27:0:0:0:20125:8383:24:0
Arenasport 7;OIV:626000:B8D0G19256S1T32Y0P0:T:27500:1301=27:1302=hrv@17:0:69B:20407:8383:24:0
Arenasport 8;OIV:626000:B8D0G19256S1T32Y0P0:T:27500:1311=27:1312@17:0:69B:20408:8383:24:0
Arenasport 9;OIV:626000:B8D0G19256S1T32Y0P0:T:27500:1321=27:1322@17:0:69B:20409:8383:24:0
Arenasport 10;OIV:626000:B8D0G19256S1T32Y0P0:T:27500:1331=27:1332@17:0:69B:20410:8383:24:0
Done, scan time: 04:57.015
Bacam se sad na uređivanje liste za Kaffeine.

EDIT 2: Sređeno i to, u scanfile.dvb je dovoljno odrediti da se radi o T2, dodati frekvencije, a ostalo staviti auto.

Code:
[dvb-t/hr-All]
T2 474000000 8MHz AUTO AUTO AUTO AUTO AUTO AUTO 0
T2 482000000 8MHz AUTO AUTO AUTO AUTO AUTO AUTO 0
T2 490000000 8MHz AUTO AUTO AUTO AUTO AUTO AUTO 0
T2 506000000 8MHz AUTO AUTO AUTO AUTO AUTO AUTO 0
T2 530000000 8MHz AUTO AUTO AUTO AUTO AUTO AUTO 0
T2 546000000 8MHz AUTO AUTO AUTO AUTO AUTO AUTO 0
T2 570000000 8MHz AUTO AUTO AUTO AUTO AUTO AUTO 0
T2 578000000 8MHz AUTO AUTO AUTO AUTO AUTO AUTO 0
T2 594000000 8MHz AUTO AUTO AUTO AUTO AUTO AUTO 0
T2 618000000 8MHz AUTO AUTO AUTO AUTO AUTO AUTO 0
T2 626000000 8MHz AUTO AUTO AUTO AUTO AUTO AUTO 0
T2 650000000 8MHz AUTO AUTO AUTO AUTO AUTO AUTO 0
T2 658000000 8MHz AUTO AUTO AUTO AUTO AUTO AUTO 0
T2 674000000 8MHz AUTO AUTO AUTO AUTO AUTO AUTO 0

Pupo 13.09.2021. 19:39
Zna netko iz glave, da sad ne čitam 100 strana, koji receiver ima jednu tipku koja se može isprogramirati, da mogu staviti paljenje i gašenje telke na to?


Krepao je starcima neki random receiver iz konzuma, pa sad da uzmem nešto da ne moraju imati 2 daljinska.

tnx

EDIT:

Ima tko ovo?

https://www.prejeftino.com/proizvod.php?id=2345
Opticum NytroBox Plus DVB-T2/C H.265 HEVC HD

Jel to ok?

smuchac 14.09.2021. 12:56
Ja imam dva doma s prigramibilnim daljincem i vanjskim IR reciverom a da me ubijes neznam marku napamet. Mogu vidjet popodne pa ti javim. Mislim da je Emos.

Poslano sa mog Redmi Note 8 Pro koristeći Tapatalk

smuchac 14.09.2021. 20:01
1 privitaka
Evo ga. Emos EM190s.Privitak 24382

Poslano sa mog Redmi Note 8 Pro koristeći Tapatalk

spawn 14.09.2021. 20:10
Taj emos je pljunuta devia iz pošte :)

smuchac 16.09.2021. 07:42
Da,isti su u bobu. :)

Poslano sa mog Redmi Note 8 Pro koristeći Tapatalk

telefunken 08.10.2021. 16:18
Trebam sobnu antenu za tv za gledanje domaćih zemaljskih programa. Koristim dvbt2 receiver od Tcoma sa prastarom antenom i signal često zna pucati pa me zanima da li da uzmem ovu s ciljem da mi signal prestane pucati?

Nikky 08.10.2021. 17:51
Najbolja sobna antena je vanjska antena, x puta već rečeno :D

Ako baš MORA biti sobna tj. stati unutar sobe onda:
- poželjno / treba da je na prozoru / staklu
- isto tako poželjno da taj prozor / staklo ima "pogled" prema odašiljaču
- ako je aktivna antena (sa pojačalom u sebi) obavezno treba imati potenciometar za regulaciju pojačanja

Ako je ikako moguće stavi malu yagi antenu s vanjske strane prozora + coax kabela koliko treba,
primjer > https://pevex.hr/a-v-program-antena-...db-339712.html

Isto vanjska ali aktivna i manjih dimenzija > https://www.chipoteka.hr/artikl/1480...uhf-7500002106

D/G 08.10.2021. 20:08
Citiraj:
Autor telefunken (Post 3552124)
Trebam sobnu antenu za tv za gledanje domaćih zemaljskih programa. Koristim dvbt2 receiver od Tcoma sa prastarom antenom i signal često zna pucati pa me zanima da li da uzmem ovu s ciljem da mi signal prestane pucati?

-Antene primaju signal a pojačala pojačaju ono što im dostavi antena pa ako je signal slab pojačala nemaju što ni pojačati (osim šuma).

-Ta "prastara" ima dobit na UHF kanalima veći od 9 dBi (teleskopske su za FM i VHF a VHF se za TV ne koristi u Hrv.) .

-Ta "uzmem" ima dobit samo 2,5 dBi a odnos napred nazad (F/B) je 0dBi tj. jednako prima sa obje strane jer nema reflektor :(
-Pojačanja pojačala se normalno kreću od 50 - 500 puta ( najbolje 22dB +/- 3dB) a pojačanjem od 40dB ili više ne bi ni imali sliku jer je 40 dB pojačanje od 10000 puta što bi izobličilo signal. Sreća je što "40dB" nije točna specifilacija jer trgovci a i proizvođači npr. za 20dB pojačanja na VHF kanalima i 22dB na UHF kanalima zbrajaju pojačanje što je apsurd jer to pojačalo ima max. 22 dB pojačanja , a ne 42 dB.
Kako Nikky reče vanjska samom pozicijom daje bolji signal pa ta LPDA (log. periodična) od 8 el. što je predložio je sasvim OK i nije velika jer se uzima samo za UHF kanale i ima + dobit od ~ 7 dBi pa većinom netreba nikakvo pojačalo.
To što se sa postojećom povremeno "kocka" slika su vjerovatno smetnje od mobitela u istoj prostoriji jer su blizu antene.

TomG 23.01.2022. 17:44
Moze preporuka za novi uredaj? Do 250 kn (za punicu je) :D

https://imageupload.io/i/OtTst8arSr
edit: nasal ova tri u elipsu


Sva vremena su GMT +2. Sada je 16:03.
Stranica 45 od 49 « Prva 3541424344 45 46474849
Show 40 post(s) from this thread on one page

Powered by vBulletin®
Copyright ©2000 - 2025, Jelsoft Enterprises Ltd.
© 1999-2024 PC Ekspert - Sva prava pridržana ISSN 1334-2940
Ad Management by RedTyger
